Calefaciens Equipment

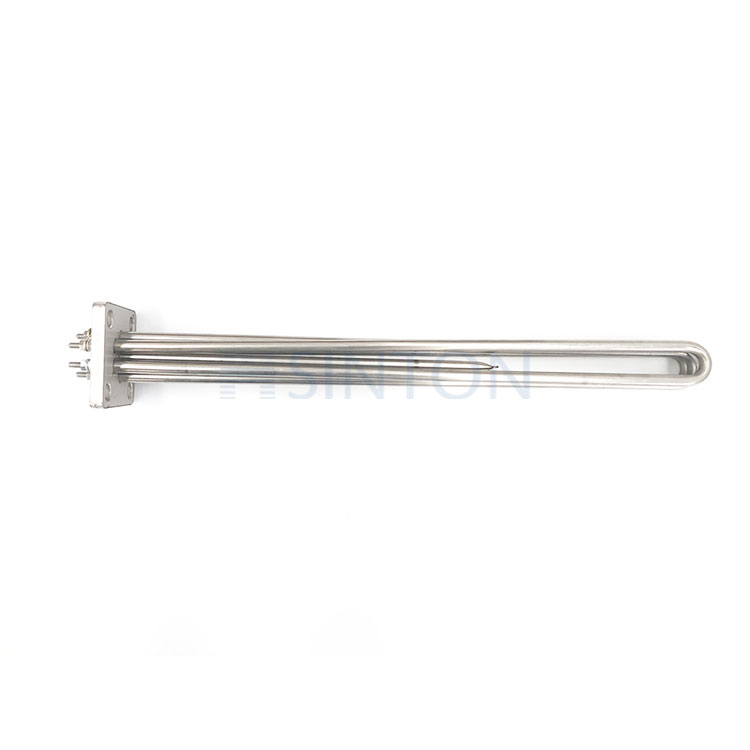

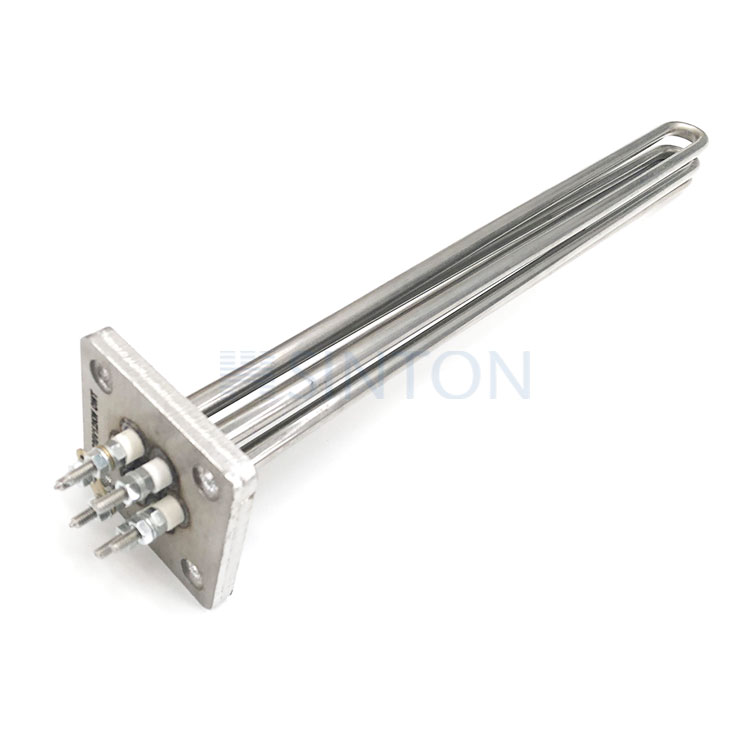

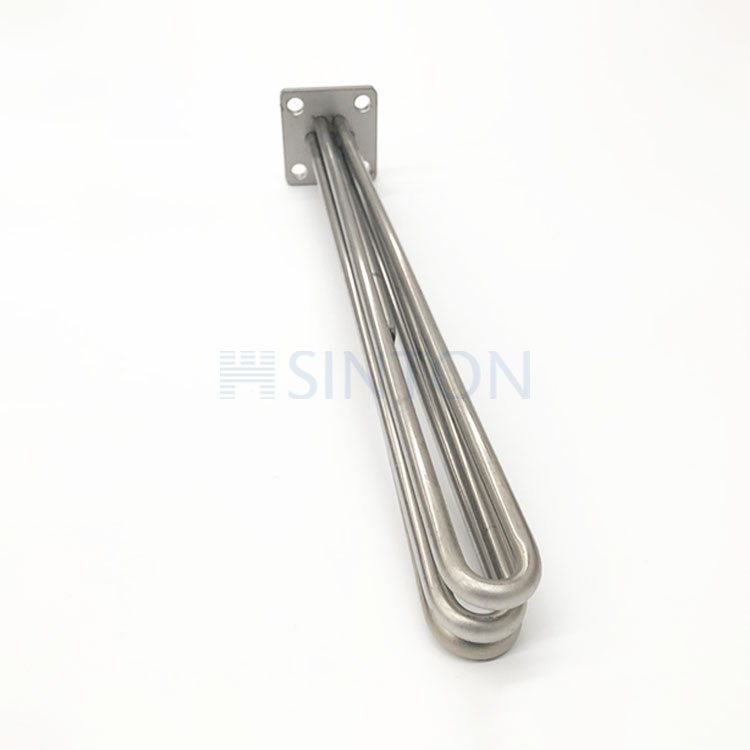

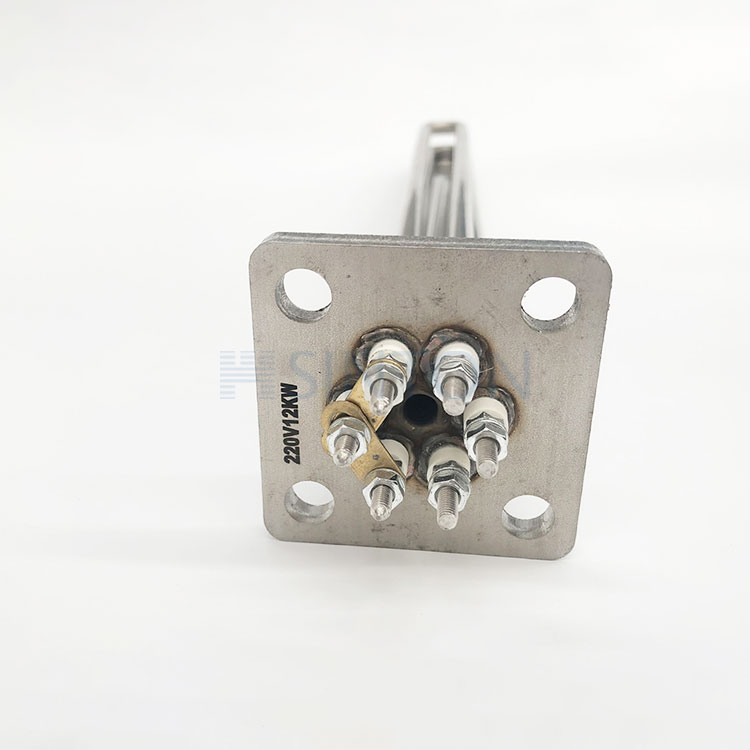

LABIUM quadratum aqua immersum fistula calefaciens est elementum calefactivum ad immersionem in liquidis (plerumque aqua). Constat ex plicarum quadrato ad unum finem et facile in vasis vel in piscinas quae calefactionem requirunt institui possunt. LABIUM factum est ex ferro immaculato et aliis materiis corrosio-resistentibus ad durabilitatem et servitium vitae in ambitibus aquae fundatis curandae. LABIUM quadratum aquae immersae fistula calefaciendi coniungitur potentiae copiae per nexus electricas, quae extra liquorem sita sunt ad tutam et facilem sustentationem praestandam. In variis adhibitis industrialibus applicationibus quae accuratam et efficientem calefactionem requirunt, uti sunt boilers, aquarum calentium, piscinarum processus, et reactoria chemica.
Parameter detail
Product Parameter
Explosio-probatio LABIUM immersionem calefacientis specificationem
| Specifications | Potentia Kw | Flanged immersionem calefacientis Liquid | Flanged calefacientis Air | Temperatus imperium range | Potestas Supple | ||
| magnitudine (mm) | Nobis (pieces of u) | magnitudine (mm) | Nobis (pieces of u) | ||||
| XTFL-5 | 5 | DN80*500 | 3 | DN100*600 | 3 | RT-700 | Unius pascha 220v |
| XTFL-10 | 10 | DN80*700 | 3 | DN100*700 | 6 | Tres phase380V,50HZ | |
| XTFL-15 | 15 | DN125*700 | 6 | DN125*700 | 9 | ||
| XTFL-20 | 20 | DN150*800 | 6 | DN150*900 | 9 | ||
| XTFL-30 | 30 | DN150*800 | 9 | DN150*1000 | 12 | ||
| XTFL-40 | 40 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-50 | 50 | DN200*1000 | 12 | DN200*1200 | 15 | ||
| XTFL-60 | 60 | DN200*1200 | 15 | DN250*1300 | 18 | ||
| XTFL-80 | 80 | DN250*1400 | 18 | DN250*150 | 18 | ||
| XTFL-100 | 100 | DN250*1600 | 18 | DN300*1600 | 24 | ||
| XTFL-120 | 120 | DN250*1600 | 18 | DN300*1600 | 27 | ||
| XTFL-150 | 150 | DN300*1600 | 24 | DN350*1600 | 36 | ||
| XTFL-180 | 180 | DN300*1600 | 27 | DN350*1800 | 36 | ||
| XTFL-200 | 200 | DN300*1800 | 27 | DN400*1800 | 45 | ||
| XTFL-240 | 240 | DN350*1800 | 36 | DN400*1800 | 54 | ||
| XTFL-280 | 280 | DN350*1800 | 36 | DN500*160 | 72 | ||
| XTFL-300 | 300 | DN400*1800 | 42 | DN500*160 | 72 | ||
| XTFL-360 | 360 | DN400*1800 | 45 | DN500*1800 | 72 | ||
| XTFL-400 | 400 | DN400*1800 | 54 | DN600*1800 | 84 | ||
| XTFL-450 | 450 | DN450*1800 | 60 | DN600*1800 | 90 | ||
| XTFL-500 | 500 | DN500*1800 | 72 | DN700*1800 | 108 | ||
| XTFL-600 | 600 | DN600*1800 | 84 | DN800*1800 | 120 | ||
| XTFL-700 | 700 | DN600*1800 | 90 | DN900*1800 | 144 | ||
| XTFL-800 | 800 | DN700*1800 | 108 | DN900*1800 | 180 | ||
| XTFL-900 | 900 | DN800*1800 | 120 | DN900*1800 | 180 | ||
| XTFL-1000 | 1000 | DN900*1800 | 144 | DN1000* 1800 | 216 | ||
